DC-260有刷馬達 /方型鐵殼
用途： 中控鎖 、後視鏡鏡面調整
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

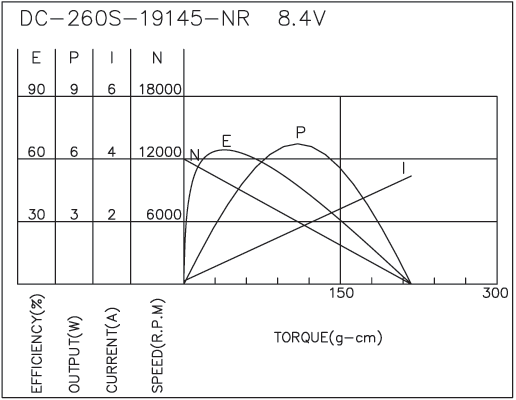

| DC-260S-19145-NR | 6.0-12.0 | 8.4V CONSTANT | 12000 | 0.13 | 9700 | 0.72 | 38 | 3.73 | 3.83 | 64 | 3.45 | 218 | 21.37 |

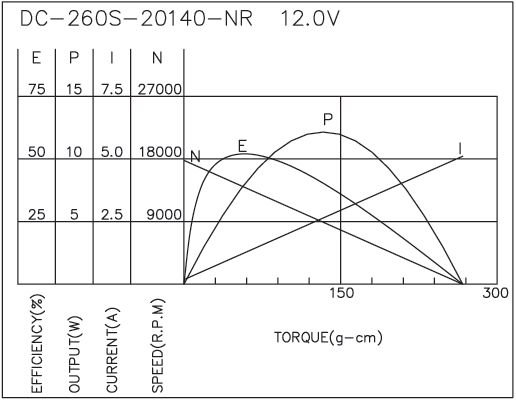

| DC-260S-20140-NR | 6.0-12.0 | 12.0V CONSTANT | 17800 | 0.18 | 13600 | 1.39 | 60 | 5.88 | 8.50 | 52 | 5.11 | 267 | 26.18 |

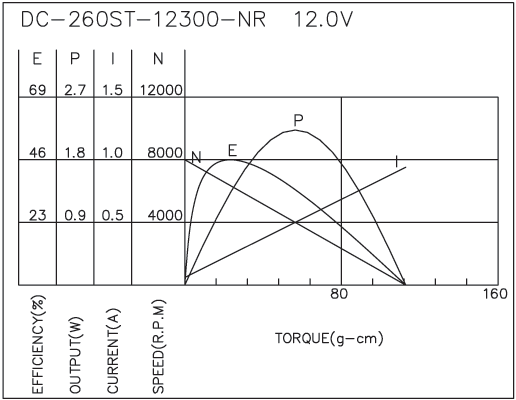

| DC-260ST-12300-NR | 12.0-24.0 | 12.0V CONSTANT | 8000 | 0.06 | 6100 | 0.26 | 23 | 2.25 | 1.46 | 46 | 0.94 | 113 | 11.08 |

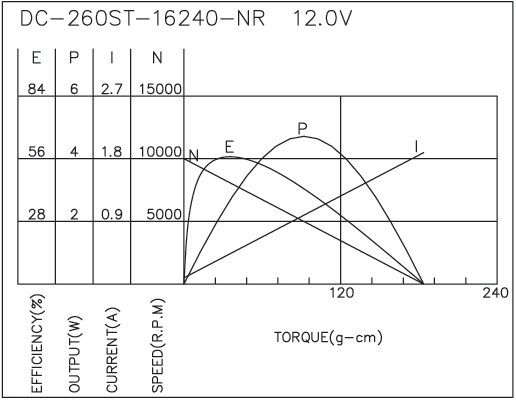

| DC-260ST-16240-NR | 6.0-12.0 | 12.0V CONSTANT | 10000 | 0.09 | 8100 | 0.43 | 35 | 3.43 | 2.94 | 57 | 1.89 | 184 | 18.04 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
