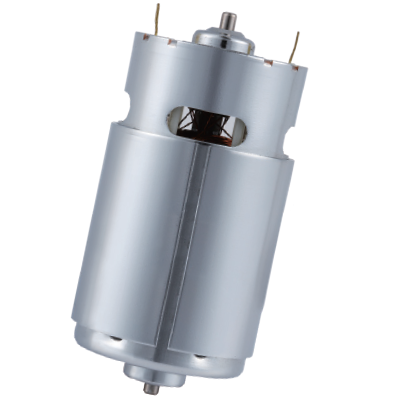

N5FN有刷馬達 /圓型鐵殼
用途： 電動工具 、玩具
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| ND5FN-3738-R | 12.0-24.0 | 24.0V CONSTANT | 12300 | 0.40 | 10900 | 2.60 | 452 | 44.31 | 50.89 | 77 | 22.65 | 4220 | 413.73 |

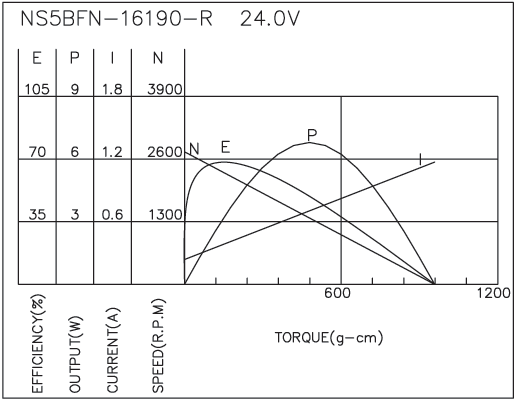

| NS5BFN-16190-R | 12.0-36.0 | 24.0V CONSTANT | 2750 | 0.09 | 2199 | 0.24 | 155 | 15.18 | 3.49 | 68 | 1.18 | 958 | 93.92 |

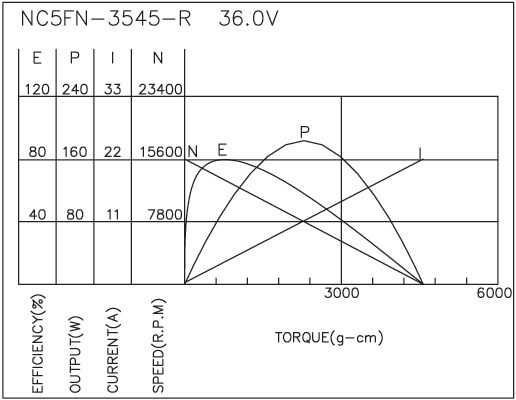

| NC5FN-3545-R | 12.0-36.0 | 36.0V CONSTANT | 15600 | 0.30 | 14300 | 2.14 | 415 | 40.69 | 21.85 | 80 | 21.85 | 4578 | 448.82 |
| NC5FN-3550-R | 12.0-36.0 | 12.0V CONSTANT | 4400 | 0.25 | 3700 | 1.40 | 313 | 30.69 | 12.03 | 72 | 8.49 | 2214 | 217.06 |

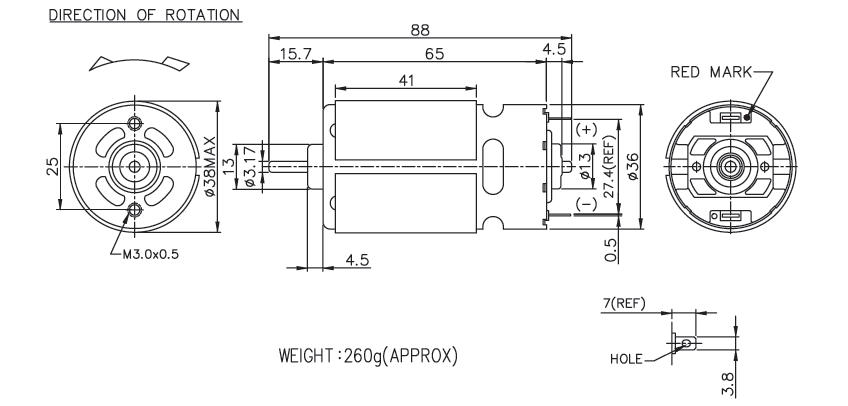

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
