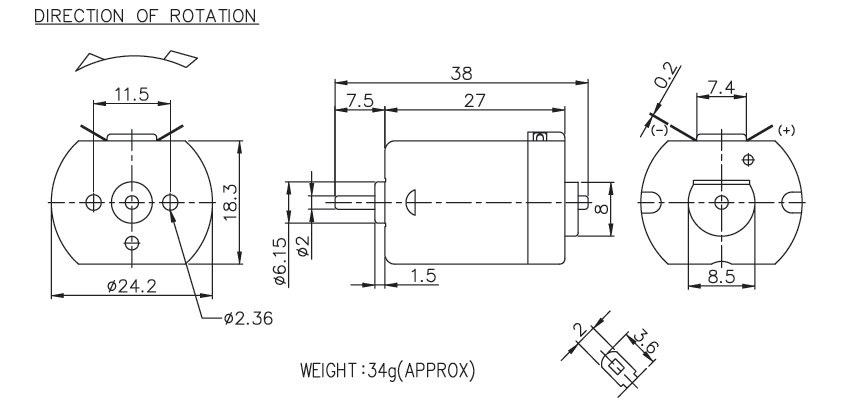

UC-260有刷馬達 /方型鐵殼
用途： 中控鎖 、吹風機 、電動給皂機
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| UC-260-18160-NR | 3.0-9.0 | 6.0V CONSTANT | 10000 | 1.20 | 7860 | 0.44 | 19.6 | 1.92 | 1.58 | 60 | 1.80 | 97 | 9.50 |
| UC-260S-09400-NR | 12.0-24.0 | 12.0V CONSTANT | 6000 | 0.07 | 4520 | 0.15 | 17 | 1.66 | 0.80 | 44 | 0.45 | 70 | 6.86 |
| UC-260S-2665P-R | 3.0-6.0 | 4.5V CONSTANT | 14000 | 0.32 | 10893 | 1.82 | 40 | 3.92 | 4.48 | 55 | 6.76 | 174 | 17.06 |
| UC-260S-12300P-R | 12.0-24.0 | 24.0V CONSTANT | 16500 | 0.10 | 13021 | 0.43 | 45 | 4.44 | 6.06 | 58 | 1.79 | 235 | 23.04 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
