RK-L250有刷馬達/圓型鐵殼

用途: 電動窗簾 、電動開罐器



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m

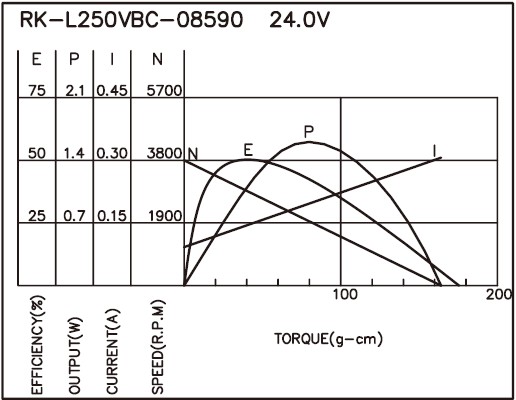

RK-L250-08590 14.0-30.0 24.0V CONSTANT 4000 0.038 3067 0.088 34.45 3.38 1.09 54 0.31 158 15.49

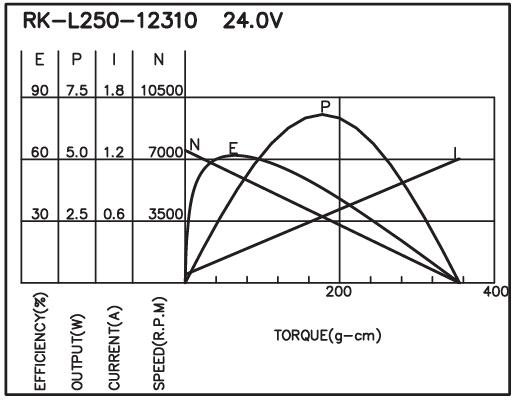

RK-L250-12310 12.0-30.0 24.0V CONSTANT 7500 0.080 5938 0.254 60.61 5.94 3.70 62 1.20 355 34.80

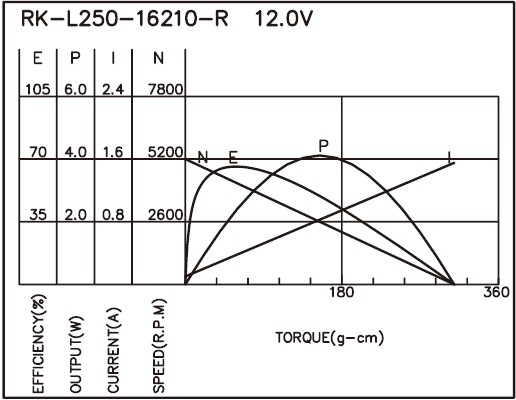

RK-L250-16210 6.0-24.0 12.0V CONSTANT 5200 0.100 4474 0.337 54.71 5.36 2.51 66 1.55 309 30.29
RK-L250-19135 4.0-15.0 12.0V CONSTANT 8500 0.150 7508 0.513 52.63 5.16 4.06 69 3.15 392 38.43
馬達的出軸長度及性能參數,EMC 對策可依客人要求做調整,詳情可詢問相關業務人員。
  • torque_151452861491.jpg
  • torque_151452861496.jpg
  • torque_151452861475.jpg
  • torque_151452861424.jpg
